Product overview

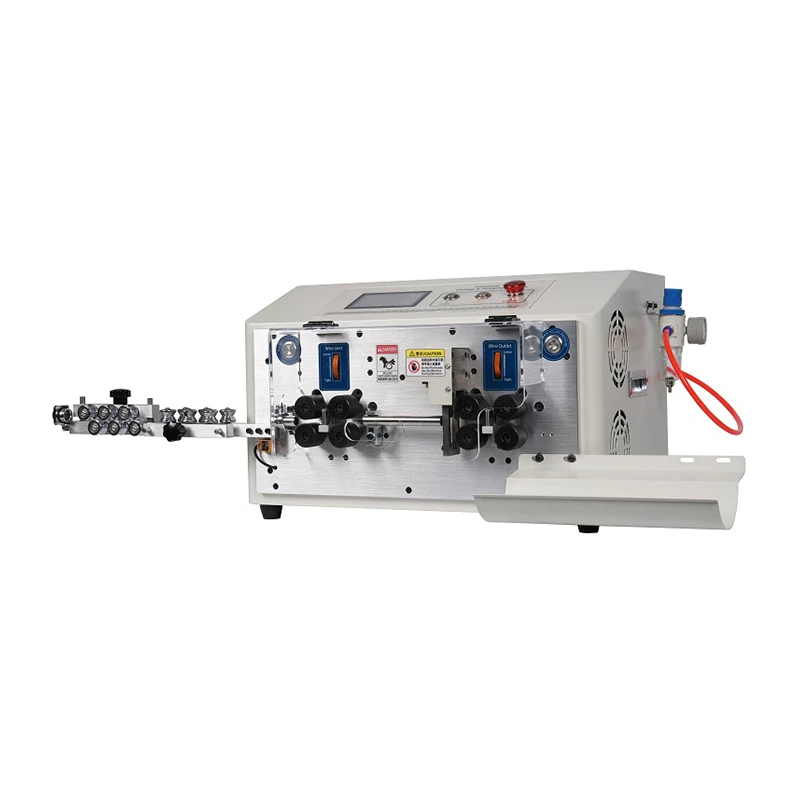

The 8 Wheels 25mm² Cable Stripping Machine is an industrial cable stripping machine designed for controlled removal of insulation from electrical wires in production and workshop environments. It is used to prepare cables for downstream processes such as termination, assembly, and harness building.
key features
- 25 mm² Capacity: Engineered for heavy-duty wire preparation up to 25 mm² cross-sections.
- Multi-Material Processing: Strips standard and robust insulation types, including PVC, PE, XLPE, and rubber.
- 8-Wheel Feed System: Delivers slip-free traction and precision stripping for single-core and qualified multi-core cables without marking the jacket.
- High-Mix Flexibility: Rapid-changeover engineering eliminates the need for multiple dedicated single-use machines, reducing tooling capital expenditure.
Product Specification
|
Weight |
50KG |
|
Electrical connection |
110V/220V 50HZ/60HZ |
|
Operation interface |
4.3 inch Chinese and English switching touch screen display |
|
Machine dimension |
560*460*365mm |
|
Wire length range |
1～9999mm |
|
Strip length |
Front end:0-80; rear end:0-80mm |
|
Length accuracy |
± (0.002xL)mm |
|
Intermediate peeling times |
16 times |
|
Wire cross section |
0.2～25mm² ( BV single strand wire 6mm²) |
|
Max conduit inside diameter |
￠11mm |
|
Wire material |
PVC,Teflon,Braided,Fiberglass wire |
|
Blade material |
High-speed steel |
|
Transport speed |
(L=100MM piece/hour) 3000-4000 pieces |
|
Driving mode |
eight-wheel drive (silent hybrid stepper motor, 0.1mm forward per step) |
Automation Integration System
- Integrated PLC/HMI touchscreen stores job parameters for instant recall, eliminating manual setup errors during batch changes.
- Seamlessly integrates into semi-automatic production cells; features standard I/O interfaces for synchronized communication with upstream feeding and downstream coiling/stacking equipment.
- High-density mechanical layout optimizes floor space utilization in tight workshop cells.
Industrial Safety
- Interlocked Physical Guards: Heavy-duty enclosure isolates all moving parts and automatically cuts power if opened during operation.
- Immediate E-Stop: Prominently positioned, operator-side Emergency Stop button ensures instant line shutdown.
about us
We specialize in advanced wire stripping, cutting, and terminal crimping automation solutions. More than just building machines, we help the global wire harness industry improve efficiency, increase production capacity, and scale with confidence.
After-Sales Support
- Traceable QA & Compliance: Individual serial-number tracking for lifetime parts provisioning. Fully compliant with CE and UKCA standards.
- Export Documentation: Delivered with complete commercial invoices, packing lists, and Certificates of Origin (CO) for hassle-free customs clearance.
- Wear-Parts Availability: Ready-to-ship spare kits (blades, feed rollers, guide tubes) minimize scheduled maintenance downtime.
- Warranty: Backed by a 12-Month Factory Warranty with standard Service Level Agreement (SLA) response commitments.
